What is the difference between COB segment LCM module and COB dot matrix LCM module

During the product selection phase for instrumentation, home appliances, power energy meters and other electronic projects, many R&D engineers and procurement specialists struggle with a common question: how to choose between two screens adopting COB packaging technology, COB segment LCM module and COB dot matrix LCM module. Both belong to LCM modules, built on mature COB Chip-On-Board packaging technology with good anti-interference performance for industrial applications. However, they differ greatly in display principle, content presentation and applicable scenarios. Picking the right module helps match your equipment display requirements.

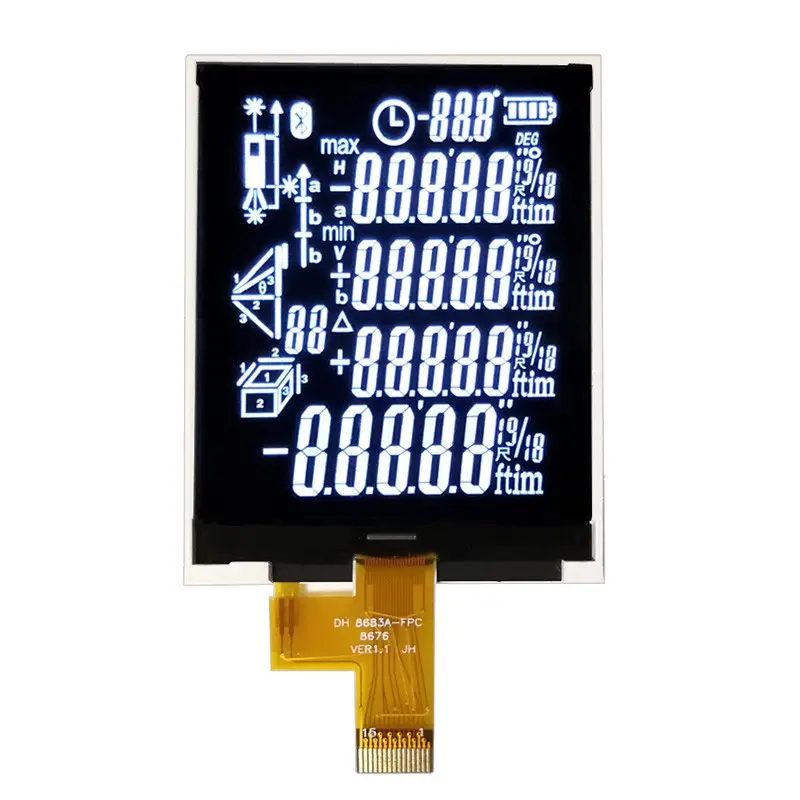

A COB segment LCM module, also known as a segment liquid crystal module, consists of segmented fixed electrodes. Each electrode segment corresponds to pre-defined numbers, symbols or icons with a relatively simple structure.



Only pre-set segments can be illuminated to show fixed information such as figures, units and simple warning signs. Devices that merely display fixed numerical readings, including energy meters, temperature controllers and compact detectors, commonly adopt COB segment LCM modules. This module features controllable cost, low power consumption and a simple driving solution with stable lead time. It serves as a popular LCD segment screen solution for mass-produced home appliances and power meter projects.



A COB dot matrix LCM module is constructed from a matrix of tiny pixels. By turning individual pixels on and off, it can flexibly render numbers, texts, curves and simple graphics, with display content editable in real time.



Unlike fixed segments on segment screens, dot matrix screens support dynamic content switching and custom characters or waveform graphs. It suits equipment requiring interaction and data curve visualization, such as multi-parameter industrial instruments and portable testing devices. As a dot matrix LCD screen, it requires more complex driver programming and comes at a higher overall cost compared with segment solutions.



We can compare them from key selection dimensions.



Display capability: The COB segment LCM module only shows predefined graphics and numbers without customisable images. The COB dot matrix LCM module supports programmable display for custom text and curves.



Development effort: Segment modules feature simple drivers and shorter development cycles. Dot matrix modules require display programming with heavier development workload. Application industries: COB segment LCM modules are widely used for energy meters and small home appliances. COB dot matrix LCM modules are commonly used as LCD screens for instruments and meters and industrial control testing equipment.



Many clients contacting Shenzhen custom LCD screen manufacturers often enquire about sampling lead times for these two modules. If your device only needs fixed numbers and symbols, COB segment LCM module is the preferred option. If dynamic data, curves or custom text are required, COB dot matrix LCM module is recommended.



Shenzhen Jingyao Optoelectronics provides customisation and sampling services for COB segment LCM modules and COB dot matrix LCM modules. We can deliver suitable LCM module display solutions according to client requirements on size, viewing angle and wide temperature range.
