With the continuous popularization of intelligent electronic devices, human-machine interaction has become an essential part of product design. Many industrial equipment, smart home appliances and handheld instruments are equipped with LCM modules inside. Many buyers wonder during component selection: what is the function of an LCM module in electronic products? It is more than a simple display screen. As an integrated display assembly, it supports information output and human-machine interaction for devices.
LCM stands for Liquid Crystal Module. An LCM module integrates LCD panel, driver IC, PCB circuit board, backlight unit, flexible cables and related structural parts. Compared with bare LCD glass, LCM modules are pre-assembled and pre-tested before delivery. Manufacturers can embed them directly into finished products, greatly simplifying hardware development workflows. This is why LCM modules are widely adopted in industrial and consumer electronics industries.
Its core function is visual data output. Various data collected by electronic equipment, such as temperature, humidity, voltage, operating parameters and operation menus, are converted into visible texts and graphics through the LCM module. Whether it is small home appliance panels, handheld detectors or industrial control terminals, users can read device status and check operating conditions via LCM modules. Without an LCM module, data collected by the device can only be stored inside the chip and cannot be viewed by users.
Besides, it acts as the medium for human-machine interaction. For devices with buttons or touch functions, the LCM module works with the main control chip to give operation feedback. When operators send commands via buttons, the LCM module refreshes the screen in real time to show operation results. In industrial control scenarios, reliable LCM modules can display parameters steadily, reduce the chance of misoperation and ensure stable equipment operation.
From the perspective of product development, LCM modules help shorten project cycles. If companies purchase bare LCD glass, driver ICs and backlight components separately, they need to complete lamination, soldering and testing on their own. This brings heavy development work and challenges in yield control. By adopting mature LCM modules, hardware engineers do not need to develop display drivers from scratch. It cuts debugging time and accelerates new product launch. Meanwhile, modular solutions help manage material costs for mass production.

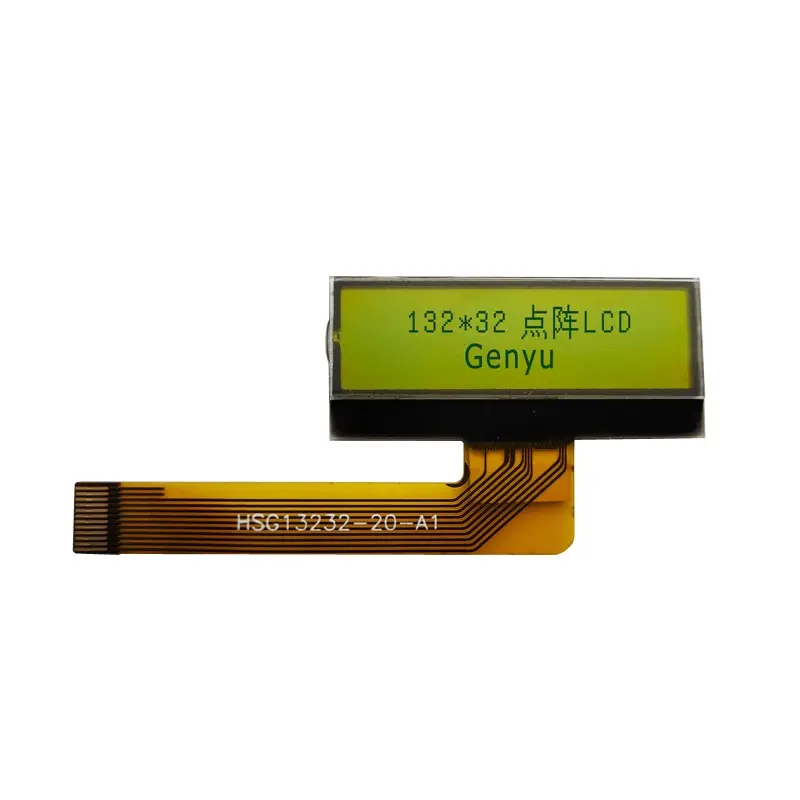

Different application scenarios require different types of LCM modules. Segment LCM modules are suitable for devices that only display numbers and symbols. Dot matrix LCM modules support texts and simple graphics, ideal for applications requiring richer interfaces. Buyers can select suitable LCM modules according to resolution, viewing angle, operating temperature, power consumption and other specifications.
LCM modules also deliver advantages for low-power devices. Many battery-powered handheld and industrial devices adopt low-power LCM variants. They maintain clear display while lowering overall power consumption and extending device battery life.
In summary, the LCM module serves as the "visual window" of electronic products. It undertakes two core tasks: information display and human-machine interaction. It also streamlines product development and ensures stable display performance. For both consumer and industrial electronics, a properly matched LCM module solution can improve the overall user experience of end devices.
